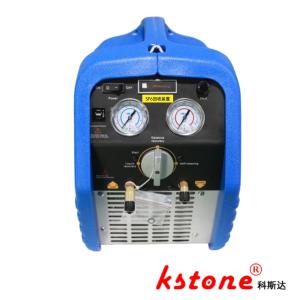

220V Portable Sf6 Gas Recovery Machine KSLF-3Y/T For 10-35kV MV Switchgear - Ideal For Middle East GIS Manufacturers & Power Companies
The Portable Sf6 Gas Recovery device (Model: KSLF-3Y/T) is a high-performance solution tailored for recovering SF6 gas from 10-35kV medium-voltage (MV) switchgear, making it a top choice for GIS (Gas Insulated Switchgear) manufacturers, power companies, and electrical maintenance teams across the Middle East. This compact, on-site-focused equipment excels in field operations, though it is not recommended for frequent workshop use—aligning with the region’s demand for mobile, reliable SF6 management tools.
Below is the detailed parameter table of this Portable Sf6 Gas Recovery device, helping you quickly grasp its technical capabilities:
| Category |
Details |
| Model |
KSLF-3Y/T |
| Compressor Displacement |
2.8m³/h |
| Compressor |
Made in China (Imported option available) |
| Maximum Discharge Pressure |
3.5MPa |
| Maximum Suction Pressure |
0.4MPa |
| Allowable Discharge Pressure |
3.2MPa |
| Cooling Method |
Air cooling |
| Recovery Performance |
Final pressure ≤ 53Kpa; Gaseous recovery: 20-30 kg/h; Liquid recovery: 70-80 kg/h |
| Storage Method |
Liquid state, directly pressable into cylinders for storage |
| Total Weight (Excl. Cylinder) |
<25 kg |
| Noise |
60DB |
| Dimensions (Approx.) |
Length 500 × Height 400 × Width 300 mm (Subject to actual delivery) |
| Power |
1KW |
| Power Supply |
220V |
Key advantages of this Portable Sf6 Gas Recovery device include its efficient compressor, supporting both gaseous and liquid recovery to minimize SF6 waste. The air-cooling system ensures stable operation even in the Middle East’s warm climates, while its lightweight design enhances portability for on-site tasks. It operates on a 220V power supply with simple steps: connect the left input to electrical equipment, the right output to a gas cylinder, plug in AC220 power, and turn on the switch (gaseous recovery is commonly used).
The Portable Sf6 Gas Recovery device comes with full attachments: a built-in compressor (3.5MPa max pressure), customisable inflatable cabinet interface pipeline, standard gas cylinder pipeline, and aluminum alloy portable outer box. Optional spare gas tanks and self-sealing valves (for electrical equipment) add versatility. For Middle East GIS manufacturers and power companies prioritizing efficiency and compliance, this Portable Sf6 Gas Recovery device optimizes SF6 management, cuts costs, and meets sustainability goals.
